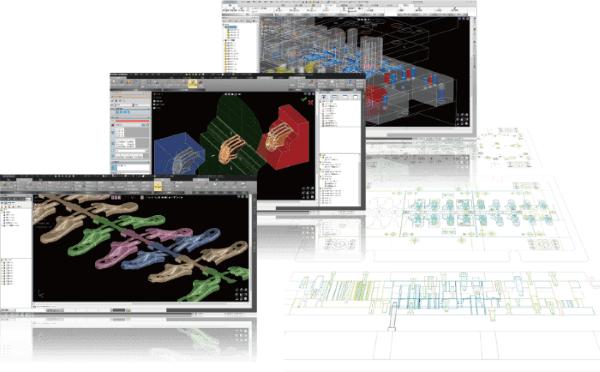

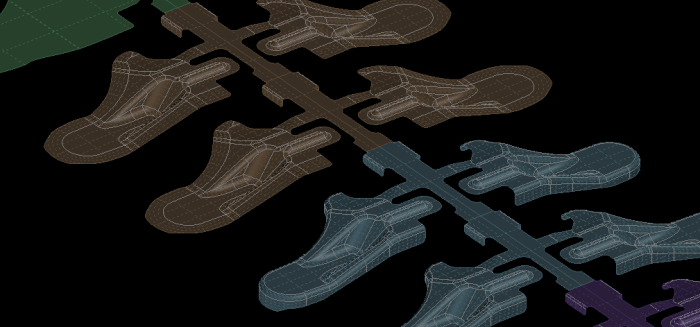

EXCESS-HYBRID II is hybrid CAD/CAM system adapted to Die/Mold manufacturing site, which allows you to simultaneously consider and work on 2D/3D data on the same system, providing the extremely efficient and quick solution even for the design process with trial and error. Upstream Press/Mold design such as progressive die layout and cavity/core is supported powerfully with advanced 3D functions. High customizability and abundant machining pattern also help the machining site.

This is exactly why "True" hybrid system can increase productivity of design/drawing/machining work beyond the 2D/3D boundary.

Unique Hybrid Technologies

 What's NEW
  • Feb.6.2017

    EXCESS-HYBRID II V2.1 Released

  • Mar.11.2015

    Public support site

  • Jan.19.2016

    EXCESS-HYBRID II Released

  • Jan.19.2016

    Publish Movie

 Support Site

COMPONENTS

Read More

INTERFACE

Read More

FUNCTIONS

VIDEO

Read More

Modern Architecture

EXCEESS-HYBRID II has a native support for 64-bit OS environment, which releases from the memory limitation, and supports comfortable work environment. Besides, it realizes advanced and high level of performance and reliability because it is designed to utilize the latest work station technology.

Operating System

Microsoft
Windows 7 Professional SP1 64bit
Windows 8.1 Pro 64bit
Windows 10 Pro 64bit
Windows 10 Education 64bit

Hardware

CPU
Intel Multi-Core Processor
RAM
8GB or more
HARD DISK
80GB以上
Graphics
3D Acceleration OpenGL board (NVIDIA series)
Monitor
1280 x 1024 resolution or more
Microsoft Office
Excel2007 or more
Other
DVD drive

Other

3D mouse is supported for Zoom in/out or Rotation of 3D model. It shows the power in modeling. ( * Made by 3D Connexion Corporation)
