SYSTEM FEATURES Product Summary
Feature of CG Series
Know the features of CG Series
CG Series is based on SOLIDWORKS® which is a high-performing in between design to manufacturing and it is 3D CAD/CAM system which has consistency of each options you can do add-on, such as option of press design "CG PressDesign", mold design "CG MoldDesign" and machining "CG CAM-TOOL". There are many applications that can do add-on to SOLIDWORKS®, but no company can provide press design, analysis and CAM as one company but only us. and also, It is the software for ｍold design which have received an award of gold product by Dassault Systèmes SolidWorks at first among Japanese manufacturer.
*Dassault Systèmes SolidWorks（US site）：
CG Press Design｜
CG Mold Design｜
CG CAM-TOOL

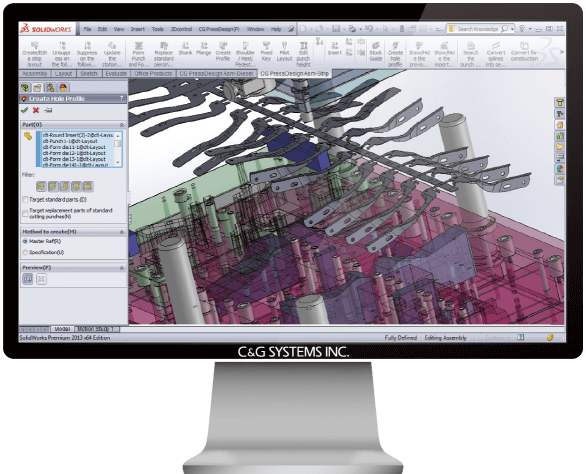

3D design system for Progressive Press Die. Many specialized functions are available for press die design such as powerful blank/partial drawing development function, layout design function linked with product shape change, die structure design function supporting numerous standard parts.

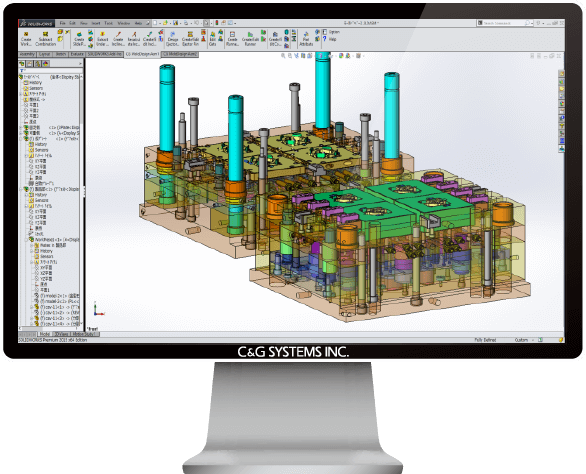

3D design system for Mold at middle and small size parts. Numerous functions specialized in mold design are available, such as shrinkage function, cavicore division function, slide design function, ejector pin creation function, electrode creation function, die Structure design function supporting numerous standard parts.

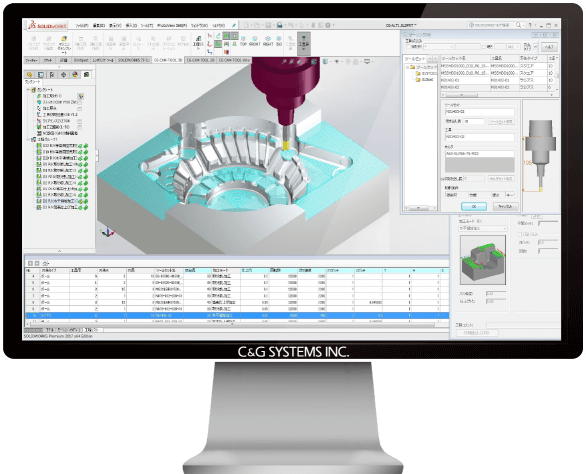

New CAM system aimed at mold/die machining for middle and small size parts, which keeps high accuracy and high quality as it is, pursuing easy operation. The polygon & surface engine which is well-established in CAM-TOOL" realizes high precision and high efficiency machining.
System Configuration & Requirements

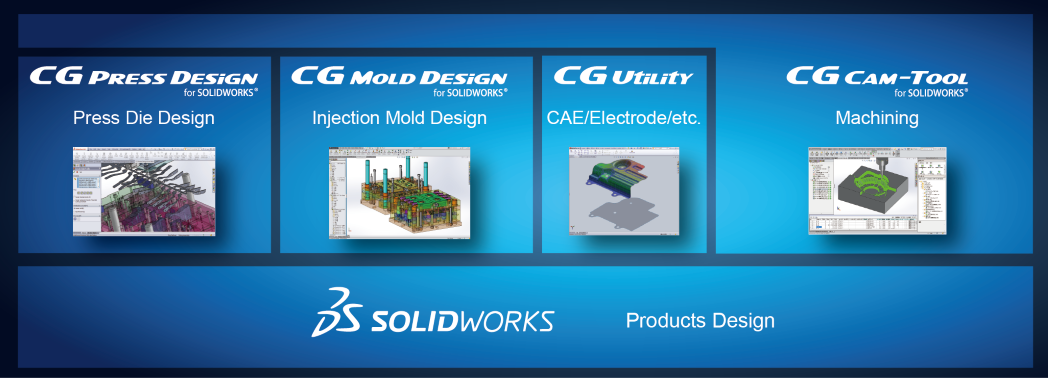

Add-in configuration for easy system expansion
System configuration
System requirements / SOLIDWORKS®
SOLIDWORKS®2023（SP1 / SP3 / SP5） NEW!!
SOLIDWORKS®2022（SP1 / SP2 / SP3.1 / SP5）
SOLIDWORKS®2021（SP1 / SP4.1 / SP5.1）
SOLIDWORKS®2020（SP1 / SP4 / SP5）
SOLIDWORKS®2019（SP2 / SP4 / SP5）
SOLIDWORKS®2018（SP1 / SP4 / SP5）
SOLIDWORKS®2017（SP2 / SP3 / SP4.1 / SP5）
System requirements / OS & Hardware
Compliant with SOLIDWORKS®, Native correspondence is carried out at the 64-bit OS environment. It was released from memory restrictions and comfortable work environment is realized also to large scale.
SOLIDWORKS®System Requirements
（www.solidworks.com）
OS |
|
CPU |
Multi-Core Processor |
RAM |
16GB or more |
HDD |
80GB or more |
VIDEO |
3D Acceleration OpenGL board |
NEW Function of CG Series
Version Up Information
For SOLIDWORKS® 2023
CG PressDesign / CG MoldDesign
- Part No. Settings（Common）
- Drawing Spring（Common）
- LC for Standard Parts（Common）
- Create Machining Holes for O ring（Common）
- Part List（Common）
- Create Work Piece（CG MoldDesign）
- Angular Pin Escape（CG MoldDesign）
- Machining Hole for Ejector Pin（CG MoldDesign）
- Fixed Key（CG PressDesign）
- Stock Guide（CG PressDesign）
- Preview of Die Set（CG PressDesign）
- Gas Springs Standard Parts（CG PressDesign）
- etc.
For SOLIDWORKS® 2022
CG PressDesign / CG MoldDesign
- Custom Registration /Calling
- Machining Code Master
- Blank Size
- Flange/Escape
- Die Structure List View
- Icon registration
- Windows11 Supported（SP2 or later)
- etc.
For SOLIDWORKS® 2021
CG PressDesign / CG MoldDesign
- Parts contour（Common）
- Part attributes （Common）
- Hole list（Common）
- Create / Edit Die Structure（CG MoldDesign）
- Parts Annotation（CG MoldDesign）
- Round Draw part（CG PressDesign）
- Standard Parts（CG PressDesign）
CG CAM-TOOL
- Renewal of "Tooling DB" and addition of TOWA, MISUMI, and DIJET
For SOLIDWORKS® 2020
CG PressDesign / CG MoldDesign
- Standard Parts Catalog（Common）
- Create Section Line（Common）
- Edit Parts（Common）
- Design Electrode / Extract Machined Area（Common）
- Reinforced Escape Hole（Common）
- Create Rectangular Sketch（Common）
- Modify Standard parts（CG PressDesign）
- Inclined Pin - Extract undercut（CG MoldDesign）
- Exploded View Setting（CG MoldDesign）
- Die Set Design / Edit Die Set（CG MoldDesign）
- Drawing Release（CG MoldDesign）
- PUNCH INDUSTRY CO., LTD. Standard Components（CG MoldDesign）
CG CAM-TOOL
- Z-level Roughing / Path Type（Round2）
- Z-level finishing & Low angle Finishing / Bidirectional turn back
- 2.5D Re-machining / Combine two or more entities
- 2.5D Side Cutting / Approach from edge
- Show Interfering Path / Overcut
- Hide All CL / Hide Stock
For SOLIDWORKS® 2019
CG PressDesign / CG MoldDesign
- Clearance / Depth master (Common)
- Hole list view (Common)
- Machining group editing (Common)
- Socket Head Cap Screw (Common)
- Work Title (Common)
- Processing Name
- File name setting ( CG PressDesign )
- Body Attribute (CG MoldDesign)
- Gate (CG MoldDesign) etc.
For SOLIDWORKS® 2018
CG PressDesign / CG MoldDesign
- Part Contour Creation
- Extruding Parts
- Parts Edit
- Hole List View
- Load Units (CG PressDesign）
- Materials Guide (CG PressDesign）
- Slide Design（CG MoldDesign）
- Die Structure（CG MoldDesign）
- Gate Edit（CG MoldDesign）
CG CAM-TOOL
- Horizontal Area Cutting："Face not to machine" Support
- Create All 2D Structures
- Edit All 2D Structures / Dimensions
- Switch to Cutting Mode using "Save as Default"
- CL Editor：Edit Hole Entity Support
For SOLIDWORKS® 2017
CG PressDesign / CG MoldDesign
- Die Structure List View
- Create / Edit Machining Hole
- Base Line for Drawing
- Machining Code Master
- Unbending by steps（CG PressDesign）
- Lambda / Springback Table, Change K-Factor/Change All K-Factor（CG PressDesign）
- Create Slide Part（CG MoldDesign）
- Create / Edit Ejector Pin（CG MoldDesign）
CG CAM-TOOL
- 3D：[Z-level Scanning-line Roughing] / Cusp height
- 3D：[Z-level Roughing] / Stock calculation when specifying "Cutting Boundary"
- 2D：Simultaneous creation of "Cutting Entity" & "Sequence" from [Project]
- 2D：[Groove Machining] corresponds to engraving for characters
- Wire：Same length for "Approach" & "Escape"
For SOLIDWORKS® 2016
CG PressDesign / CG MoldDesign
- Custom Registration / Calling
- Autodimension Extension
- Create all the punches for the inside cuts of the selected part（CG PressDesign）
- Marking punch（CG PressDesign）
- Form Punch and Form Die Insert（CG PressDesign）
- Pattern Layout（CG MoldDesign）
- Check Mating Face（CG MoldDesign）
- Check Insert Line（CG MoldDesign） etc.
CG CAM-TOOL
- 3D：Divide CL
- 3D：[Corner Processing] "Face not to machine"
- 3D：Enhancement of [Z-level Scanning-line Rough Cutting]
- 2D：Helical Tapping
- 2D：[2D Side Cutting] "Cusp height"
- 2D：Improvement of "Create All Face Hole Entities"
- Wire："Save as default" for process setting
For SOLIDWORKS® 2015
CG PressDesign / CG MoldDesign
- Enhancement in Pilot Layout（CG PressDesign）
- Skeleton Drawing and other assistance functions（CG PressDesign）
- Enhancement in Create Ejector Pin（CG MoldDesign）
- Check Hole Interference（CG MoldDesign）
- Roughness Mark by Auto Dimension
- Machining Group Master
CG CAM-TOOL
- 3D：New cutting mode "Z-level Scan-line Roughing"
- 3D：Z step-down on gentle slope for "Z-level Roughing"
- 3D：Expansion of target entities for “Curve Cutting”
- 2D：Supporting to tapered wall & bottom corner R for "Long Groove Machining"
- Wire：Wire-path with single stroke for plural punch parts
- 2D / Wire：Auto-creation of pre-hole for 2D & Wire machining
- 2D / Wire：Auto-detection for small radius in wire contour and tool-path creation for remaining
For SOLIDWORKS® 2014
CG PressDesign
- Plate Split
- Spring Calculation
- Auto Escape Hole Creation
- Interference Check in Animation
- Interference Check (Inner Tap Hole)
- Hole Profile (New Group & Team)
- Die Opening Drawing
- Die Structure Edit
- Part Attributes (Excluded Parts & Section View)
- Grid Setting for Parts Layout
CG MoldDesign
- Create Mold opening drawing
- Call Spring（Slide Core & Return Pin）
- Extrude Split Area（Cavity-Core Design）
- Improving Functions of Ejector Design
- Cooling Path (Split)
- Inclined Pin Design
- Runner Create Path
- Air vent attribute extension
- Grid-capable for part layout
- Component interference confirmation（tap）etc.
CG CAM-TOOL
- 2D：Long-Slotting
- 2D：Cutting Entity Creation from Feature
- Restore of Command Parameter
- Line Width for CL Display
For SOLIDWORKS® 2013
CG MoldDesign
Improve function and high performance, so 40% less operation time- Design Slide
- Register custom base
- Design Ejector
- Design Cooling
- Register Unit Parts
- Drawing function
CG CAM-TOOL
- WIRE Module released（Feb.2013）
- 3D：Face not to machine/Different stock surface
- 2D：2D chamfering
- 2D：G01 cycle
- 2D：3D process creation
- Wire：Improvement of Trace NC function
- Cutting DB / Completely renewed functions
- Path simulation
- Preview display/placement of tool
For SOLIDWORKS® 2012
CG PressDesign
- Batch creation of cutting edge
- Punch mismatch type expansion
- Die structure designing function
- Replacement of standard cut punches
- Improved operability of the StandardParts function
- Batch creation of machining holes to multiple parts
- Creation of autodimensions and hole lists during drawing release
- "Batch Blank / Partial Blank" Option released（jun,2012）
CG CAM-TOOL
- 2D&HOLE Module released（Feb,2012）
